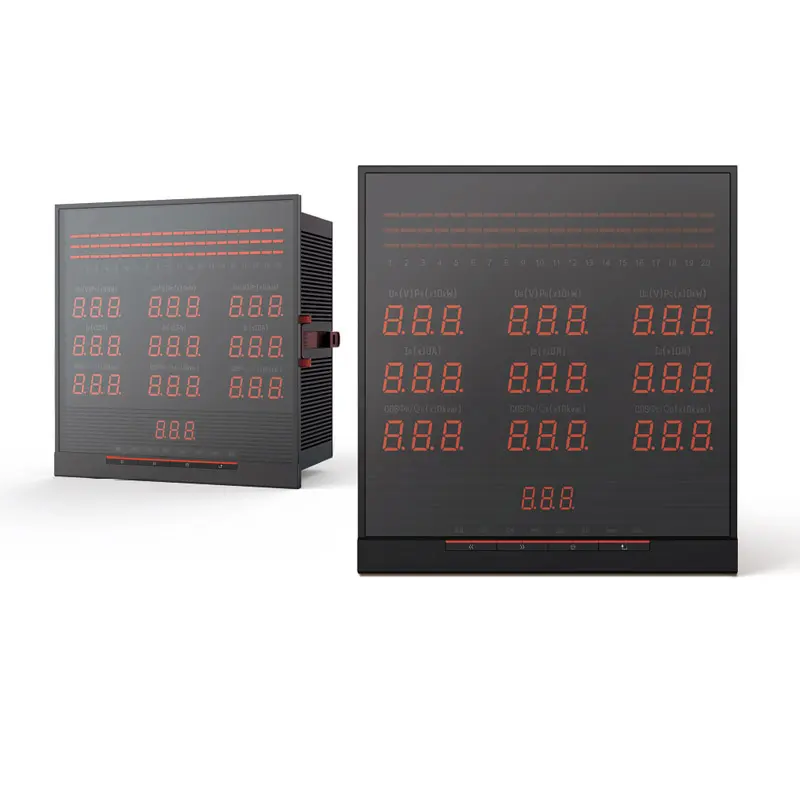

JKGHYBA580 intelligent combination low voltage reactive power measuring&controller device is new type of low voltage reactive power compensation controller that integrates measurement, control and display.
It mainly integrates normal voltmeters, ammeters, power factor meters, reactive power meters, and active power meters in one controller, It can also display three phase compensation current and capacitor switching status display. This product adopts RS485 communication method, which can connect up to 20 pieces of HY series combined low voltage power capacitors.
| HKG | HY | BA | – | 580-l | – | □□ |
| | | | | | | | | | | ||
| 1 | 2 | 3 | 4 | 5 |
| No. | Name | |
| 1 | Controller type | |
| 2 | Enterprise code | |
| 3 | Automatic control | |
| 4 | Specification | 580:normal type 580-l:special made (equipped with anti-harmonic) |
| 5 | Procedure category |
*Note:JKGHYBA580-l is equipped with HYBAGK
Normal working and installation conditions
| Ambient temperature | -25°C ~ +55°C |
| Relative humidity | ≤ 50% at 40°C ; ≤ 90% at 20°C |
| Altitude | ≤ 2000m |
| Environmental conditions | no harmful gas and steam, no conductive or explosive dust, no severe mechanical vibration |
| Power condition |
Rated voltage 220V±20%; THDvm5%;
Rated frequency 50Hz±5Hz
Performance
| Measurement accuracy | voltage: ≤ ±0.5%(0.8-1.2Un)/ current: ≤ ±0.5%(0.2-1.2ln)/ active power reactive ≤ ±2%, reactive power: ≤ ±2%, power factor: ≤ ±1% | |
| Control quantity | 20 Pieces | |
| Compensation method | three phase compensation or mixed compensation | |
| Control method | RS485 | |
| Protective function | Over-voltage protection, under-voltage protection, under-current protection, over-harmonic protection | |
| Standard | JB/T 9663-2013 | |
| Dimension and structure | Dimension(WxHxD) Mounting dimension(WxH) | |
 |
170x170x120 | 160×160 |
