◎Advanced imported production equipment and excellent imported PP film.
◎ The product has a smaller volume and more reliable quality.
◎ Unique design ensure that the product can adapt to higher environments.
◎ Places with signifi cant temperature and system voltage fluctuations.
◎ New type of aluminum shell packaging, with better product sealing and no leakage.
◎ Newly designed installation feet, sturdy and convenient.
◎ Unique lead out terminals, convenient wiring, reliable and safe connection.
◎ The corrosion-resistant metal shell is sturdy, and no need to painting
Overview

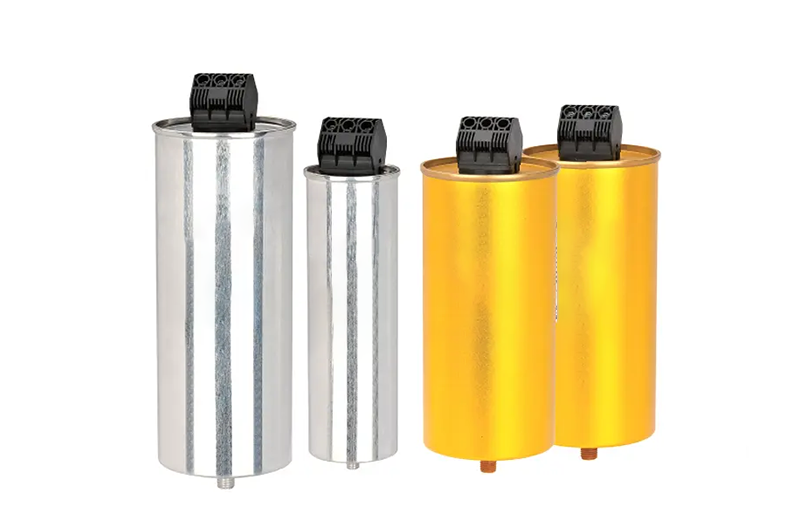

The HYSMK series self-healing low voltage parallel power capacitors
are suitable for power frequency AC
·power systems with rated voltage of 1000V and below, used to
improve power factor and voltage quality
Model and Meaning
Standard
GB/T12747.1-2017 GB/T12747.2-2017
IEC 60831-1:2014 IEC 60831-2:2014
Technical Parameters
Normal working and installation conditions |
|
|
Ambient temperature |
-25℃ ~+50℃ |
|
Relative humidity |
Relative humidity ≤ 50% at 40℃ ; ≤ 90% at 20℃ |
|
Altitude |
≤ 2000m |
|
Environmental conditions |
It is free of harmful gases and vapors, conductive or explosive dust, and there is no severe mechanical vibration. |
Performance |
|
|
Rated voltage |
(0.25~0.69)kV, AC |
|
Rated frequency |
50Hz or 60Hz |
|
Rated capacity |
(1~40)kvar |
|
Capacity tolerance |
-5%~+10% |
|
AC withstand voltage |
Withstand voltage between terminals: 2.15Un/AC is applied between the capacitor terminals，for 10 seconds, |
|
Withstand voltage between terminals and shell: 3.5kV/AC is applied between the capacitor，terminals and the |
|
|
Loss tangent |
≤ 0.001 under rated power frequency voltage at 20℃ |
|
Maximum allowable over voltage |
1.1Un; <8h per 24h |
|
Maximum allowable over current |
1.3 In |
|
Self-discharge characteristics |
Applying a DC voltage of 2Un to the capacitor,afte disconnecting the power supply for 3 mins, the remaining voltage drops |
Main Product Models, Specifi cations, And Data Sheets
HYSMK-0.25 Single phase
|
Model No.Model No. |
Rated |
Rated capacity |
Rated capacity |
Rated |
Rated |
Dimension |
Installation |
Figure No. |
|
0.25-2.5-1 |
250 |
2.5 |
127.3 |
10 |
50 |
76×240 |
ΦM12x16 |
Figure 1 |
|
0.25-5-1 |
250 |
5 |
254.6 |
20 |
50 |
76×240 |
ΦM12x16 |
|
|
0.25-7.5-1 |
250 |
7.5 |
382 |
30 |
50 |
86×240 |
ΦM12x16 |
|
|
0.25-10-1 |
250 |
10 |
509.3 |
40 |
50 |
86×240 |
ΦM16x25 |
Figure 2 |
|
0.25-12.5-1 |
250 |
12 |
611.2 |
48 |
50 |
86×240 |
ΦM16x25 |
|
|
0.25-15-1 |
250 |
15 |
763.9 |
60 |
50 |
96×290 |
ΦM16x25 |
|
|
0.25-20-1 |
250 |
20 |
1018.6 |
80 |
50 |
106×290 |
ΦM16x25 |
HYSMK-0.4 Three phase
|
Model No. |
Rated |
Rated capacity |
Rated |
Rated |
Rated |
Dimension |
Installation |
Figure No. |
|
0.4-2.5-3 |
400 |
2.5 |
49.7 |
3.6 |
50 |
76×240 |
ΦM12x16 |
Figure 1 |
|
0.4-5-3 |
400 |
5 |
99.5 |
7.2 |
50 |
76×240 |
ΦM12x16 |
|
|
0.4-7.5-3 |
400 |
7.5 |
149.2 |
10.8 |
50 |
76×240 |
ΦM12x16 |
|
|
0.4-10-3 |
400 |
10 |
198.9 |
14.4 |
50 |
86×240 |
ΦM12x16 |
|
|
0.4-12.5-3 |
400 |
12.5 |
248.7 |
18 |
50 |
96×240 |
ΦM16x25 |
Figure 2 |
|
0.4-15-3 |
400 |
15 |
298.4 |
21.7 |
50 |
96×240 |
ΦM16x25 |
|
|
0.4-20-3 |
400 |
20 |
397.9 |
28.9 |
50 |
106×290 |
ΦM16x25 |
|
|
0.4-25-3 |
400 |
25 |
497.4 |
36.1 |
50 |
116×290 |
ΦM16x25 |
|
|
0.4-30-3 |
400 |
30 |
596.8 |
43.3 |
50 |
136×290 |
ΦM16x25 |
|
|
0.4-35-3 |
400 |
35 |
696.3 |
50.5 |
50 |
136×290 |
ΦM16x25 |
|
|
0.4-40-3 |
400 |
40 |
795.8 |
57.7 |
50 |
136×290 |
ΦM16x25 |
Main Product Models, Specifi cations, And Data Sheets
HYSMK-0.44 Three phase
|
Model No. |
Rated |
Rated capacity |
Rated |
Rated |
Rated |
Dimension |
Installation |
Figure No. |
|
0.45-2.5-3 |
450 |
2.5 |
39.3 |
3.2 |
50 |
76×240 |
Φ12×16 |
Figure 1 |
|
0.45-5-3 |
450 |
5 |
78.6 |
6.4 |
50 |
76×240 |
ΦM12x16 |
|
|
0.45-7.5-3 |
450 |
7.5 |
117.9 |
9.6 |
50 |
76×240 |
ΦM12X16 |
|
|
0.45-10-3 |
450 |
10 |
157.2 |
12.8 |
50 |
76×240 |
ΦM12X16 |
|
|
0.45-12.5-3 |
450 |
12.5 |
196.5 |
16 |
50 |
86×240 |
ΦM12X16 |
|
|
0.45-15-3 |
450 |
15 |
235.8 |
19.2 |
50 |
86×290 |
ΦM12X16 |
|
|
0.45-20-3 |
450 |
20 |
314.4 |
25.7 |
50 |
96×290 |
ΦM16X25 |
Figure 2 |
|
0.45-25-3 |
450 |
25 |
393 |
32.1 |
50 |
106×290 |
ΦM16X25 |
|
|
0.45-30-3 |
450 |
30 |
471.6 |
38.5 |
50 |
116×290 |
ΦM16x25 |
|
|
0.45-35-3 |
450 |
35 |
550.2 |
44.9 |
50 |
116×290 |
ΦM16X25 |
|
|
0.45-40-3 |
450 |
40 |
628.8 |
51.3 |
50 |
136×290 |
ΦM16X25 |
HYSMK-0.45 Three phase
|
Model No. |
Rated |
Rated capacity |
Rated |
Rated |
Rated |
Dimension |
Installation |
Figure No. |
|
0.45-2.5-3 |
450 |
2.5 |
39.3 |
3.2 |
50 |
76X240 |
ΦM12X16 |
Figure 1 |
|
0.45-5-3 |
450 |
5 |
78.6 |
6.4 |
50 |
76×240 |
ΦM12X16 |
|
|
0.45-7.5-3 |
450 |
7.5 |
117.9 |
9.6 |
50 |
76×240 |
ΦM12X16 |
|
|
0.45-10-3 |
450 |
10 |
157.2 |
12.8 |
50 |
76×240 |
ΦM12X16 |
|
|
0.45-12.5-3 |
450 |
12.5 |
196.5 |
16 |
50 |
86×240 |
ΦM12x16 |
|
|
0.45-15-3 |
450 |
15 |
235.8 |
19.2 |
50 |
86×290 |
ΦM12X16 |
|
|
0.45-20-3 |
450 |
20 |
314.4 |
25.7 |
50 |
96×290 |
ΦM16X25 |
Figure 2 |
|
0.45-25-3 |
450 |
25 |
393 |
32.1 |
50 |
106×290 |
ФM16X25 |
|
|
0.45-30-3 |
450 |
30 |
471.6 |
38.5 |
50 |
116×290 |
ΦM16X25 |
|
|
0.45-35-3 |
450 |
35 |
550.2 |
44.9 |
50 |
116×290 |
ΦM16X25 |
|
|
0.45-40-3 |
450 |
40 |
628.8 |
51.3 |
50 |
136×290 |
ΦM16X25 |
HYSMK-0.48 Three phase
|
Model No. |
Rated |
Rated capacity |
Rated |
Rated |
Rated |
Dimension |
Installation |
Figure No. |
|
0.48-2.5-3 |
480 |
2.5 |
34.5 |
3 |
50 |
76×240 |
ΦM12X16 |
Figure 1 |
|
0.48-5-3 |
480 |
5 |
69.1 |
6 |
50 |
76×240 |
ΦM12x16 |
|
|
0.48-7.5-3 |
480 |
7.5 |
103.6 |
9 |
50 |
76×240 |
ΦM12x16 |
|
|
0.48-10-3 |
480 |
10 |
138.2 |
12 |
50 |
76×240 |
ΦM12X16 |
|
|
0.48-12.5-3 |
480 |
12.5 |
172.7 |
15 |
50 |
86×240 |
ΦM12x16 |
|
|
0.48-15-3 |
480 |
15 |
207.2 |
18 |
50 |
86×240 |
ΦM12x16 |
|
|
0.48-20-3 |
480 |
20 |
276.3 |
24 |
50 |
86×290 |
ΦM16X25 |
Figure 2 |
|
0.48-25-3 |
480 |
25 |
345.4 |
30 |
50 |
96×290 |
ΦM16x25 |
|
|
0.48-30-3 |
480 |
30 |
414.5 |
36.1 |
50 |
106×290 |
ΦM16x25 |
|
|
0.48-35-3 |
480 |
35 |
483.5 |
42.1 |
50 |
106×290 |
ΦM16x25 |
|
|
0.48-40-3 |
480 |
40 |
552.6 |
48.1 |
50 |
116×290 |
ΦM16x25 |
HYSMK-0.525 Three phase
|
Model No. |
Rated |
Rated capacity |
Rated |
Rated |
Rated |
Dimension |
Installation |
Figure No. |
|
0.525-2.5-3 |
525 |
2.5 |
28.9 |
2.7 |
50 |
76×240 |
ΦM12X16 |
Figure 1 |
|
0.525-5-3 |
525 |
5 |
57.7 |
5.5 |
50 |
76×240 |
ΦM12x16 |
|
|
0.525-7.5-3 |
525 |
7.5 |
86.6 |
8.2 |
50 |
76×240 |
ΦM12x16 |
|
|
0.525-10-3 |
525 |
10 |
115.5 |
11 |
50 |
76×240 |
ФM12X16 |
|
|
0.525-12.5-3 |
525 |
12.5 |
144.4 |
13.7 |
50 |
86×240 |
ΦM12X16 |
|
|
0.525-15-3 |
525 |
15 |
173.2 |
16.5 |
50 |
86×290 |
ΦM12X16 |
|
|
0.525-20-3 |
525 |
20 |
231 |
22 |
50 |
96×290 |
ΦM16X25 |
Figure 2 |
|
0.525-25-3 |
525 |
25 |
288.7 |
27.5 |
50 |
106×290 |
ΦM16X25 |
|
|
0.525-30-3 |
525 |
30 |
346.5 |
33 |
50 |
116×290 |
ΦM16x25 |
|
|
0.525-35-3 |
525 |
35 |
404.2 |
38.5 |
50 |
116×290 |
ΦM16X25 |
|
|
0.525-40-3 |
525 |
40 |
462 |
44 |
50 |
136×290 |
ΦM16X25 |
HYSMK Series Self-Healing Low Voltage Shunt Power Capacitor
HYSMK-0.69 Three phase
|
Model No. |
Rated |
Rated capacity |
Rated |
Rated |
Rated |
Dimension |
Installation |
Figure No. |
|
0.69-2.5-3 |
690 |
2.5 |
16.7 |
2 |
50 |
76×240 |
ΦM12X16 |
Figure 1 |
|
0.69-5-3 |
690 |
5 |
33.4 |
4.2 |
50 |
76×240 |
ΦM12X16 |
|
|
0.69-7.5-3 |
690 |
7.5 |
50.1 |
6.3 |
50 |
76×240 |
ΦM12X16 |
|
|
0.69-10-3 |
690 |
10 |
66.9 |
8.4 |
50 |
76×240 |
ΦM12x16 |
|
|
0.69-12.5-3 |
690 |
12.5 |
83.6 |
10.5 |
50 |
86×240 |
ΦM12X16 |
|
|
0.69-15-3 |
690 |
15 |
100.3 |
12.6 |
50 |
86×290 |
ΦM12x16 |
|
|
0.69-20-3 |
690 |
20 |
133.7 |
16.7 |
50 |
96×290 |
ΦM16X25 |
Figure 2 |
|
0.69-25-3 |
690 |
25 |
167.1 |
20.9 |
50 |
106×290 |
ΦM16X25 |
|
|
0.69-30-3 |
690 |
30 |
200.6 |
25.1 |
50 |
116×290 |
ΦM16x25 |
|
|
0.69-35-3 |
690 |
35 |
234 |
29.3 |
50 |
116×290 |
ΦM16X25 |
|
|
0.69-40-3 |
690 |
40 |
267.4 |
33.5 |
50 |
136×290 |
ΦM16X25 |
For products of other voltage and frequency levels, attach a data sheet separately
