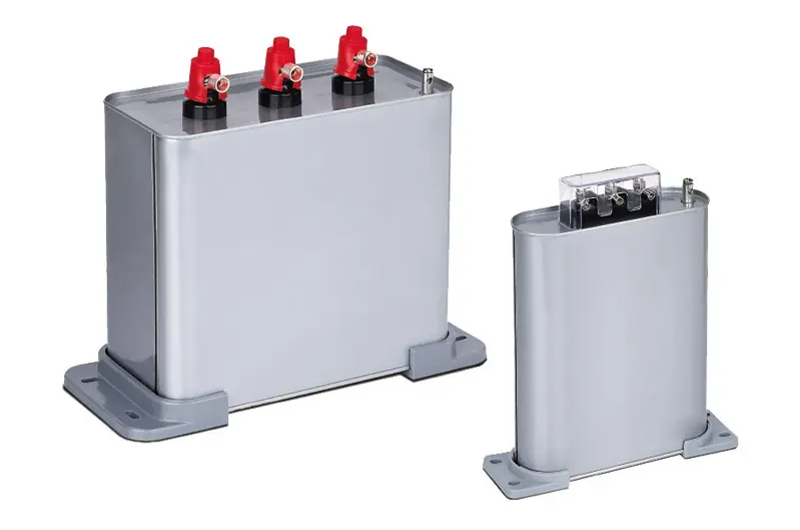

BSMJ series self-healing low voltage shunt power capacitor

1. It is suitable for power frequency AC power systems with rated voltage of 1000V and below

2. Improve power factor and voltage quality

3. Unique design and technology

4. Advanced imported production production equipment,excellent polypropylene film

5. Rated voltage:230-1200VAC

6. Rated capacity:1-60kvar

BSMJ series self-healing low voltage shunt power capacitors are suitable for power frequency AC power systems with rated voltage of 1000V and below, to improve power factor and voltage quality

Standard: JB/T 9663-2013

Features

● Advanced imported production equipment, excellent polypropylene film

● Smaller size, more reliable quality

● Unique design and technology

● Suitable for Places with large temperature and system voltage fluctuations

● New sealing equipment, no leakage

● Novel design of mounting feet, firm, convenient and bea

● Unique lead-out terminal, convenient wiring, reliable and safe connection

● Corrosion-resistant metal shell, beautiful and strong, no painting requi

B	S	MJ	□	–	□	–	□	–	□
\|	\|	\|	\|		\|		\|		\|
1	2	3	4		5		6		7

No.	Name	Meaning
1	Series code	B-shunt capacitor
2	Impregnation code	S – microcrystalline wax; K-dry
3	Medium code	Metalized polypropylene film(MPPfilm)
4	Rated voltage(kV)
5	Rated capacity(kvar)
6	Phase	Phase
7	YN	split phase compensation

Ambient temperature	-25°C ~ +50°C
Relative humidity	Relative humidity ≤ 50% at 40°C ; ≤ 90% at 20°C
Altitude	≤2000m
Environmental conditions	no harmful gas and steam, no conductive or explosive dust, no severe mechanical vibration , Guaranteed to work in good ventilation conditions, not allowed to work in a closed and unventilated environment
Performance
rated voltage	(0.23~1.2)kV, AC
Rated frequency	50Hz or 60Hz
Rated capacity	(1 ~ 60)kvar
capacity tolerance	-5%-+10%
AC withstand voltage	withstand voltage between terminals: 2.15Un / AC is applied between terminals for 10S, no permanent breakdown or flashover
AC withstand voltage	withstand Voltage: 3.5kV / AC is applied between terminal and shell for 10S_z no permanent breakdown and flashover
Loss tangent	maximum allowable overvoltage 1.1 Un; < 8h per 24h
Maximum allowable overvoltage	1.1 Un; ＜ 8h per 24h
Maximum allowable overcurrent	1.3In
Self-discharge characteristics	the capacitor is applied with √2 Un DC voltage. After power off for 3 minutes， the residual voltage drops below 75V or lower.
