Waterproof Active Harmonic Filter Panel
Waterproof Active Harmonic Filter Panel
The Elcosine AHF is a high-performance Active Harmonic Compensation Filter built on advanced 3-level topology — engineered to eliminate harmonic pollution, improve power factor, and deliver superior power quality in demanding industrial and commercial networks. Versatile, modular, and easily scalable — delivers power factor correction, voltage variation control, flicker mitigation, and dynamic load balancing in a single panel solution.
Elcosine Energia-AHF Active Harmonic Compensation Filter
Elcosine Energia-AHF Active Harmonic Compensation Filter is a perfect and
comprehensive solution to the power quality issues of power grid , such as harmonics, reactive power and 3 phase
load unbalance. Elcosine Energia-AHF which is in parallel to power grid can detect the harmonic
wave in power grid in time, generate the reverse-phase compensation current through the converter and dynamically
filter the harmonic wave in power grid.
The operation of Elcosine Energia-AHF is unaffected by multifarious load forms and power grid
structures. And it will not produce harmonic oscillation (resonance) along with the system, thus perfectly realizing
harmonic control under diverse loads. Elcosine Energia Active Harmonic Filter can fully accomplish
dynamic reactive compensation, control the capacitor switching and ultimately heighten the power factor of power grid.
Meanwhile, Elcosine Energia-AHF has the function of controlling the three-phase load current unbalance,
thus comprehensively handling various power quality matters in power grid.

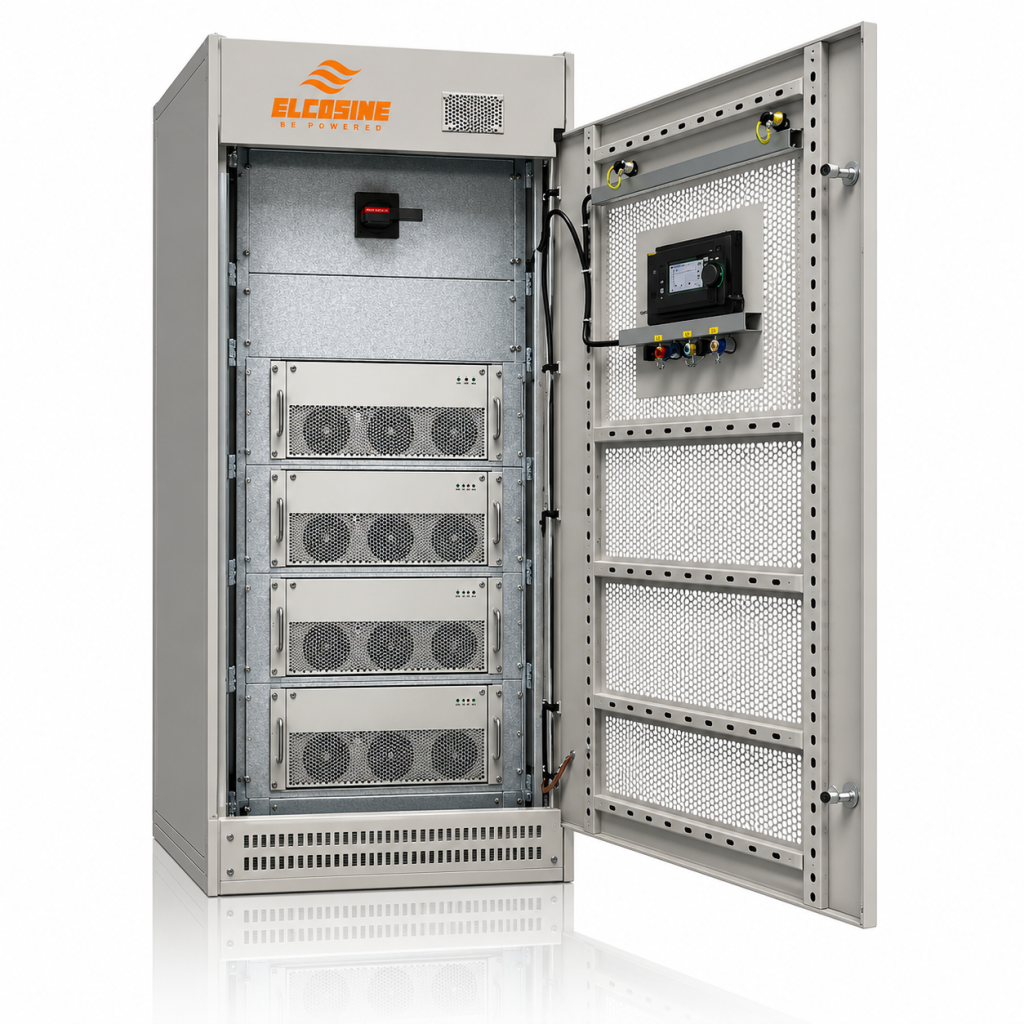

Modular Design
Elcosine Energia Active Harmonic Compensation Filter has a advanced modular design. Usually Elcosine
Energia-AHF panel consists of one or several AHF modules and an optional touched LCD Human Machine
Interface. Each AHF module is an independent harmonic filtering system, and users can change the harmonic filtering
system rating by adding or removing AHF modules.

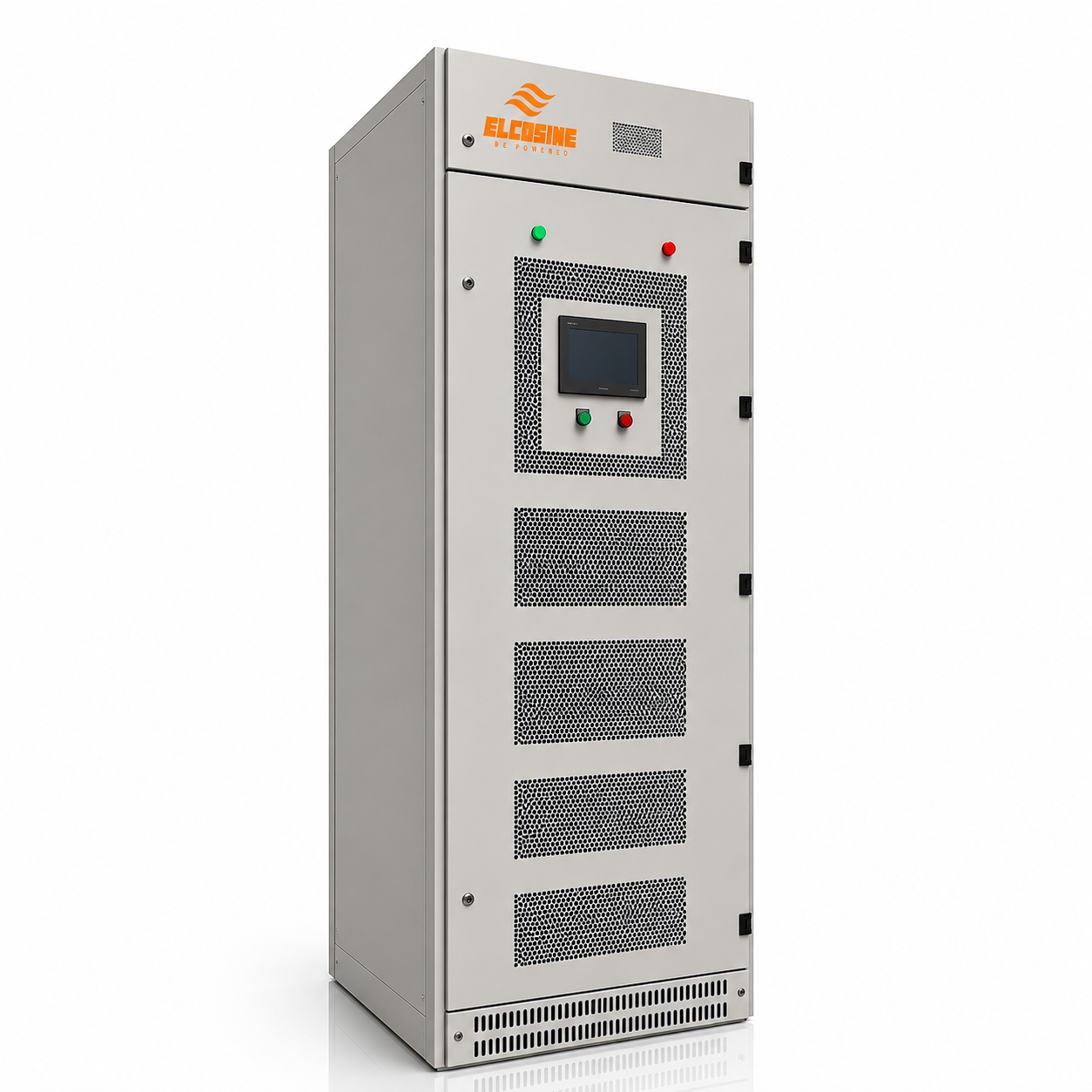

Modular AHF, Wall-mounted AHF and free landing AHF.
 |  |
Model Description
Elcosine Energia-AHF Active Harmonic Compensation Filter Panel series cover from 150A to 750A/cabinet,
support wall mounted type or free landing type.
| SN | Item | Rated Capacity | Factory Model | Dimensions (W*D*H,MM) | N.G (KG) | Packing Size (W*D*H,MM) | G.W. (KG) |
| 1 | APF | 150A | Elcosine Energia-AHF/150-4-4LF | 800*800*2200 | 220 | 950*950*2450 | 260 |
| 2 | APF | 200A | Elcosine Energia-AHF/200-4-4LF | 800*800*2200 | 260 | 950*950*2450 | 300 |
| 3 | APF | 300A | Elcosine Energia-AHF/300-4-4LF | 800*800*2200 | 315 | 950*950*2450 | 4355 |
| 4 | APF | 400A | Elcosine Energia-AHF/400-4-4LF | 800*800*2200 | 370 | 950*950*2450 | 410 |
| 5 | APF | 500A | Elcosine Energia-AHF/500-4-4LF | 800*800*2200 | 425 | 950*950*2450 | 465 |
| 6 | APF | 600A | Elcosine Energia-AHF/600-4-4LF | 800*800*2200 | 470 | 950*950*2450 | 510 |
| 7 | APF | 750A | Elcosine Energia-AHF/750-4-4LF | 1000*1000*2200 | 525 | 1150*1150*2450 | 565 |
Elcosine Energia-AHF Active Harmonic Compensation Filter is a modular, flexible, high-efficiency power quality solution for modern power networks’ problems, such as harmonics, low power factor and unbalances and so on.Elcosine Energia-AHF protects critical industrial, residential and commercial applications, solving tough power quality problems for all types of applications and customers globally.
 |  |
| Leading Technology | Optical Harmonic Filter |
|
|
 |  |
| Best Power Quality Control | High Quality Assurance |
|
|
Elcosine Energia Active Harmonic Compensation Filter has advanced features like active harmonic filtering, reactive power compensation, load balancing and capacitors controlling, as a one-stop solution for power quality management. Elcosine Energia-AHF helps to make installations compliant with prevailing power quality regulations by mitigating harmonic distortion, load unbalance and reactive power.
Elcosine Energia Active Harmonic Compensation Filter is available in a wide range of ratings, to serve a wide range of consumer applications. Its modular design allows flexibility in installation and integration. The inherent energy-efficient design,3 level topology, and the optional user-friendly Haman Machine Interface, make Elcosine Energia-AHF a highly preferred solution for all segments of electricity consumers, system integrators and OEM manufacture.
 |  |

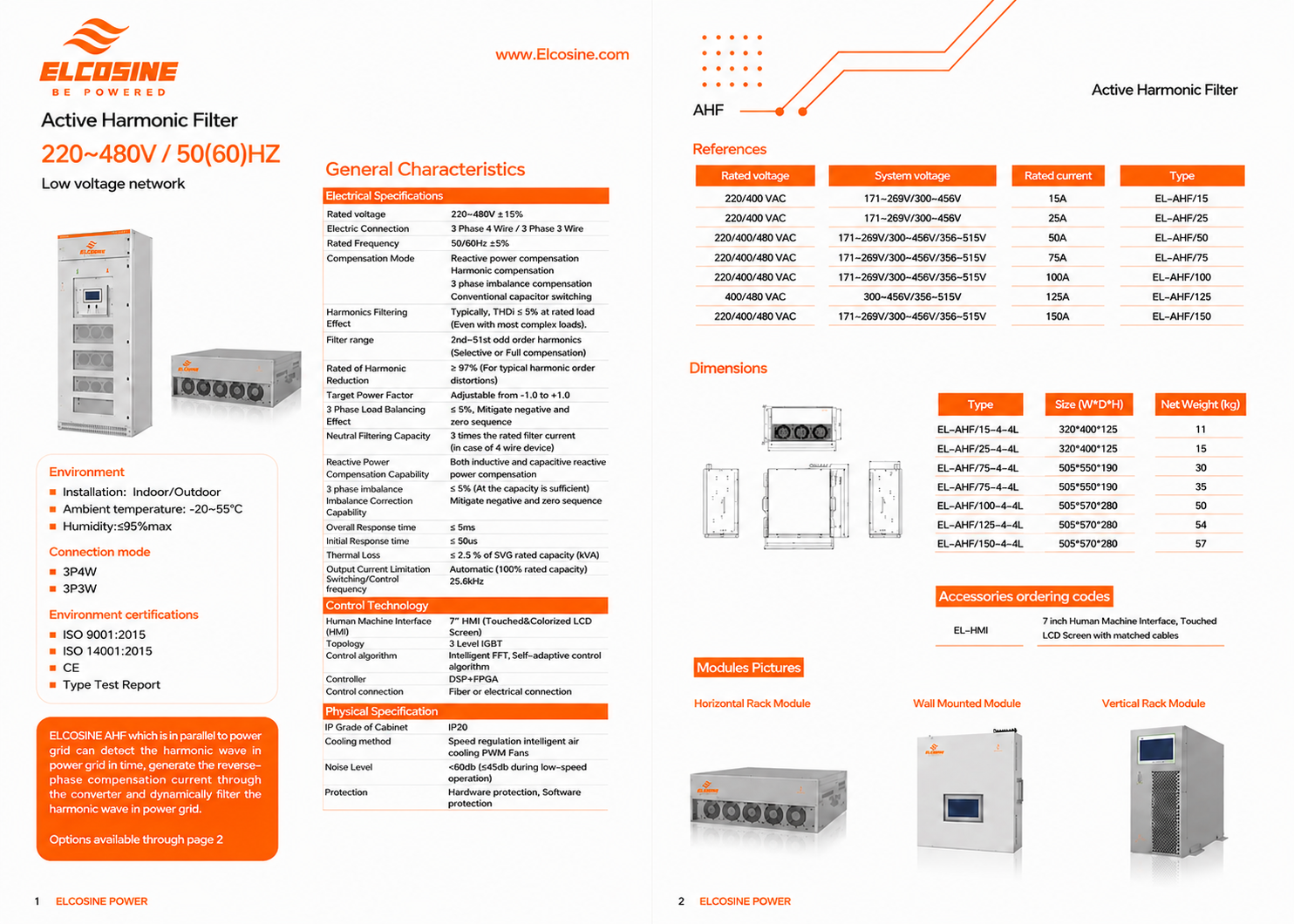

| Technical Data and Specifications | ||||
| Rated Voltage | 220V (171~269V) | 400V (300~456V) | 480V (356~515V) | 690V (483~793V) |
| Rated Current | 150~600A | 150~750A | 100~500A | 150~600A |
| Mains Frequency | 50/60Hz±5% | |||
| Circuit Topology | Three Level | |||
| Multi Compensation Mode | Harmonic compensation, reactive compensation, three-phase load unbalance compensation | |||
| Filter range | 2nd~51st odd order harmonics (Selective or Full compensation) | |||
| Rated of Harmonic Reduction | ≥97% (For typical harmonic order distortions) | |||
| Filtering Performance | Typically, THDi≤ 5% at rated load(Even with most complex loads). | |||
| Target Power Factor | Adjustable from -1.0 to +1.0 | |||
| 3 Phase Load Balancing Effect | ≤5%, Mitigate negative and zero sequence | |||
| Neatral Filtering Capacity | 3 times the rated filter current(in case of 4 wire device) | |||
| Switching/control frequency | 25.6kHz | |||
| Initial response time | ≤50us | |||
| Overall Response time | ≤5ms | |||
| Active loss of system | ≤2.5% | |||
| Output current limit | Automatically limited within 100% of rated capacity to output | |||
| Control algorithm | Intelligent FFT,Self-adaptive control algorithm | |||
| Controller | DSP+FPGA | |||
| Protection | Hardware protection, Software protection | |||
| Control connection | Fiber or electrical connection | |||
| Human Machine Interface | 7 inch touched TFT LCD HMI | |||
| Communication protocols | Adopt Modbus remote communication protocol; communication interface adopts RS485 and CAN bus, supporting mobile phone APP operation. | |||
| Noise | <60db (<45db during low-speed operation) | |||
| Installation method | Module embedded(Rack),wall mounted, free landing | |||
| Level of protection | IP20 | |||
| Cooling method | Speed regulation intelligent air cooling PWM Fans | |||
| Color | RAL 7035 Light Grey | |||
| Ambient temperature | -20~55℃ | |||
| Relative humidity | Maximum 95%, without condensation | |||
| Mounting height above sea level | ≤2000 at rated capacity; appropriately reduce the capacity if it is > 2000(1% derating per 100m) | |||
| Qaulifications | CE, IEEE61000,Type Test Report | |||
| Compliance with Standards | IEEE 519, ERG5/4 | |||
 |  |
Elcosine Energia-AHF in Textile Industry
Elcosine Energia Active Harmonic Compensation Filter, reduced harmonic levels results in improved electrical network reliability and reduced operating costs. Nuisance tripping of protective devices and nuisance clearing of fuses due to harmonic heating effects is greatly reduced.
Overheating of motors, transformers, switch gear and cables is also reduced which increases their life expectancy and reduces maintenance costs. For new installations, over-sizing of distribution equipment to reduce harmonic susceptibility can be reconsidered.
The Background
With the development of social economy and science technology, many textile printing and dyeing enterprises in order to improve the product quality of transformation technology, large use of VFDs, DC equipment, including ventilation equipment (including frequency conversion fan and air conditioning), lighting equipment, production equipment (yarn, fine sand, grasp cotton, shaping machine, dyeing cylinder, etc.), produce a large number of 5th,7th order harmonic, cause harmonic, harmonic pollution, lead to power quality decline.
 |  |
The Power Quality Problem
A company is specialized in the production of non-woven fabric manufacturer, producing a variety of short fiber non-woven cloth, varieties of melt-blown non-woven cloth, synthetic leather non-woven cloth, acupuncture non-woven cloth, propylene non-woven cloth, water absorption pad, filter non-woven cloth, antibacterial cotton, automotive interior materials, oil absorption mat and other non-woven products.
Elcosine Energia-AHF in Networks
The industrial load mainly includes carding machine, needle acupuncture machine, non-woven oven, coil machine, etc., which will produce series harmonics in the production process, resulting in the field capacitance compensation cabinet can not work normally.In order to ensure the normal operation of the field capacitors cabinet, the 300A Active Harmonic Compensation Filter is installed for harmonic mitigation.
The Technical Performance
The THDV at site is 5.9%, exceeding the national standard limit of 5%, the THDi is 23.5%, the harmonic current is mainly 3rd, 5th, 7th order harmonics, and also contains a small number of 2nd and 4th even harmonics. After treatment, THDv decreased to 2.2%, the THDi decreased to 2.0%, and the current waveform was also restored to the sinusoidal wave type.
Grid data before Elcosine Energia-AHF | Grid data after Elcosine Energia-AHF |
 |  |
The Benefits
After installation of YT Active Harmonic Compensation Filter, Will compliance with IEEE 519, G5/4, EN 50160 and also other power quality standards and recommendations:
- Energy savings
- Higher productivity
- Quick return on investment
- Longer lifetime of electrical and process equipment
- Reliable operation at reduced maintenance costs
- Additional electric capacity in existing power grid
