New generation ELC100-M intelligent combination low voltage reactive power measuring & control device
New generation ELC100-M intelligent combination low voltage reactive power measuring & control device

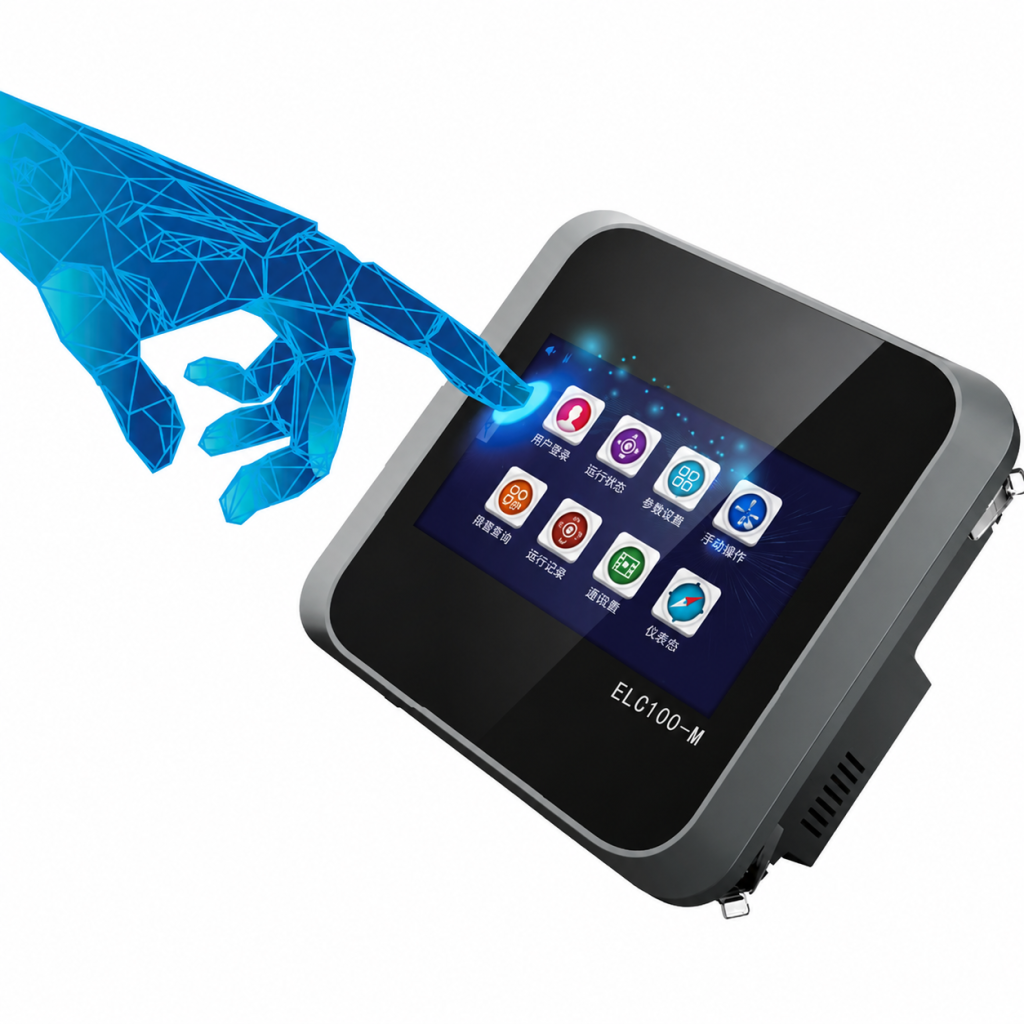

The ELC100-M is an integrated controller designed for reactive power compensation and power distribution monitoring. It combines data acquisition, communication, reactive power compensation, and grid parameter measurement and analysis into a single intelligent unit — controlled via a 4.3-inch HMI display with multi-language switching for better local user experience.
Two variants are available: ELC100-MZ, which uses RS485 communication to connect and control up to 32 EL-series combined low-voltage power capacitor compensation devices; and ELC100 -MD, which uses 12V voltage output control mode, supporting up to 24 control outputs.
Built for reliable industrial operation, the controller works across an ambient temperature range of -25°C to +55°C, up to 2000m altitude, and handles rated voltage of 220V ±20% with THDv ≤5%. Measurement accuracy is tight — voltage ≤±0.5%, current ≤±0.5%, reactive power ≤±2%, and power factor ≤±1% — ensuring precise compensation control.
ELC100 is an integrated controller for reactive power compensation and power distribution monitoring. It integrates data acquisition, communication, reactive power compensation, grid parameter measurement, and analysis.
If this product adopts RS485 communication method (ELC100 -Z), it can connect up to 32 pieces of HY series combined low voltage power capacitor compensation device or select 12V voltage output Control method (ELC100 -D), which can provide 12 or 16 steps Output (only one of the two methods can be selected)
Model and Meaning
| D | 1 | 1 | 1 | 0 | 1 | 0 | 0 | □ |
| | | | | | | | | | | | | | | | | | |
| 3 | 4 | clock display | data storage | clock display | data storage | clock display | data storage | data storage |
1 with this function 0 without this function, can be customized
| No. | Name | Meaning |
| 1 | Control method | Z: RS485 communication D: 12V voltage output control |
| 2 | Uplink communicationRS485 Modbus protocol-RTU) | standard |
*Note: ELC100 -D16 16 steps output(Can’t be configured with USB interface, capacitor current detection function)
Technical Parameters
| Normal working and installation conditions | |
| Ambient temperature | -25°C ~ +55°C |
| Relative humidity | Relative humidity ≤ 50% at 40°C ; ≤ 90% at 20°C |
| Altitude | ≤ 2000m |
| Environmental conditions | no harmful gas and steam, no conductive or explosive dust, no severe mechanical vibration |
Power condition
| Rated voltage | 220V±20%； THDv≤5% | |
| Rated frequency | 50Hz ±5Hz | |
| Performance | ||
| Measurement accuracy | Voltage: ≤ ±0.5%(0.8-1.2Un)，current: ≤ ±0.5%(0.2-1.2ln)， reactive power: ≤ ±2%, power factor: <±1% | |
| Control quantity | ELC100-Z | Rs485 communication control 32 pieces of intelligent capacitors (mixed or three phase compensation) or 16 pieces of communication type composite switches |
| ELC100-D | 12V output control 12 steps or 16 steps (composite switch node) | |
| Compensation method | mixed or three phase compensation | |
| Control method | RS485 | |
| Protective function | Over-voltage protection, under-voltage protection, under-current protection, over-harmonic protection | |
| Standard | JB/T 9663-2013 | |
Communication monitoring capability
| Communication interface | RS485 | |
| Communication protocol | Modbus protocol | |
| Dimension and structure | Dimension(WxHxD) | Mounting dimension(WxH) |
| 120*120*85 | 113*113 | |
