DuraCap HD BT Capacitor
DuraCap HD BT Capacitor
Elcosine BT Series — Heavy duty power factor correction in a rugged box design. Self-healing SH-MPP technology, N2 overpressure protection, and easy panel mounting — from standard commercial loads to the harshest harmonic-rich industries, up to 100 kVAr in a single unit. IS 13340 / IEC 60831 compliant | ISI Marked | Non-PCB | Made in India.
- DuraCap HD BT — Heavy Duty | 1–60 kVAr | 440/480/525V, 3Ph — Self-healing box type capacitor for commercial buildings, garment units, bakeries & machine shops with low harmonic loads
DuraCap HD BT — Heavy Duty Box Capacitor
Range: 1–60 kVAr | 440V / 480V / 525V | 3Ph, 50Hz, Delta Connection
For commercial buildings, garment units, bakeries & machine shops (low harmonic loads)
- Self-healing SH-MPP technology
- Compact square body — easy panel mounting
- 35,000 switchings/year | 120,000 operating hours
- N2 overpressure disconnector + IP20 protection
- Dry type, Non-PCB — environment friendly
Elcosine Box Type (BT) Capacitors
DuraCap HD BT (Heavy Duty — Low Harmonic Loads)
- Commercial Buildings — Offices, showrooms & retail complexes
- Garment & Textile Units — Stitching lines, small motor loads
- Bakeries & Food Units — Ovens, mixers & refrigeration
- Machine Shops — Lathes, drills & general workshop loads
PowerForge SHD BT (Super Heavy Duty — Up to 15% Harmonics)
- IT Parks & Data Rooms — UPS, SMPS & server loads
- Commercial Complexes with CFL/LED Lighting — Malls, hotels & hospitals
- Electronics-Heavy Industries — Automation lines with VFDs & soft starters

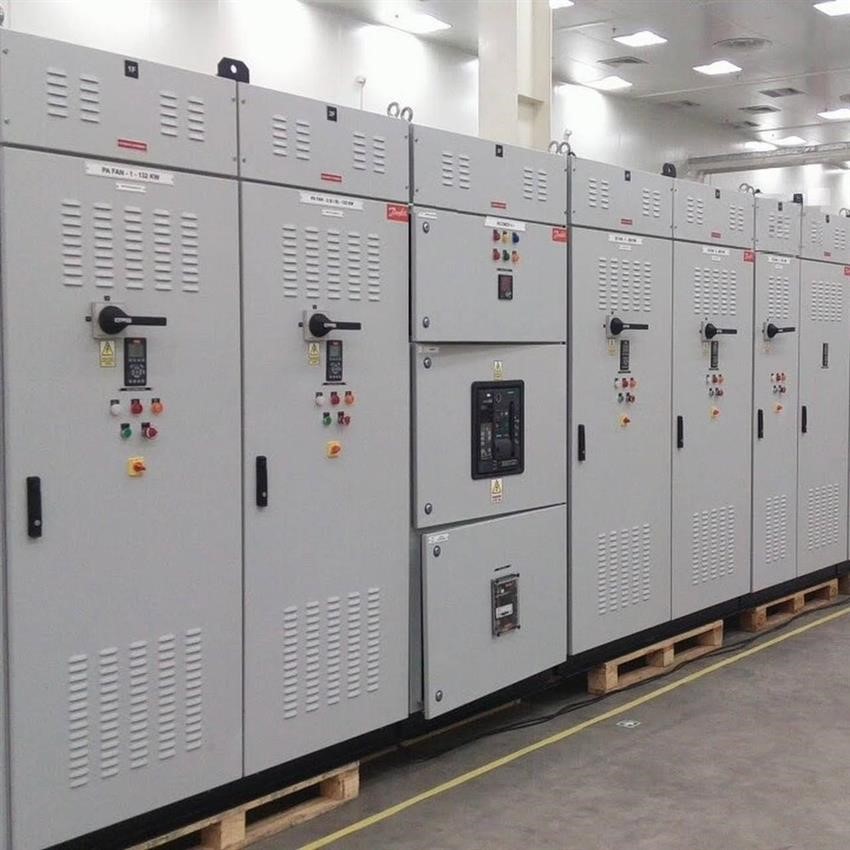

- APFC Panels — Reliable switching duty in automatic PF correction banks
Power Plus EHDXL (Ultra Heavy Duty — Up to 30% Harmonics)
- Steel & Rolling Mills — Extreme inrush and harmonic environments

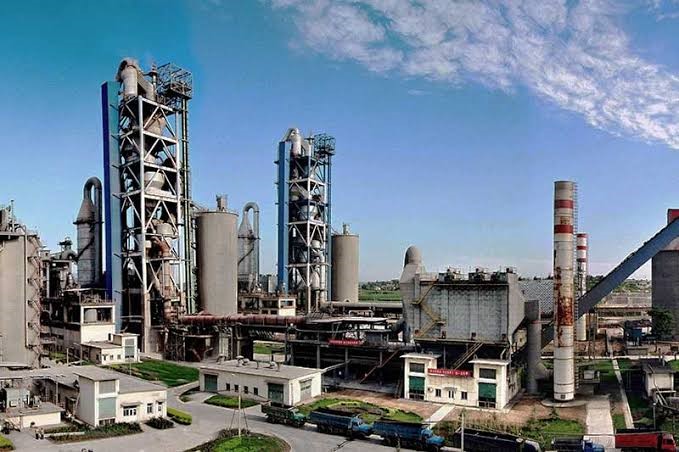

- Cement Plants — Heavy crushers, mills & kiln drives
- Forging & Foundries — Induction furnaces & power-frequency loads
- Textile Spinning Mills — Continuous heavy motor loads
- Welding-Intensive Fabrication — High switching, high distortion loads
| Product | Rated Frequency | Voltage Level | Device Manual | HMI Manual | Data Sheet | Catalog |
|---|---|---|---|---|---|---|
| DuraCap HD BT Capacitor | 50Hz | 220V/400V | Download | Download | Download | Download |
| 440V | Download | |||||
| 60Hz | 220V/400V | Download | Download | |||
| 440V | Download |
